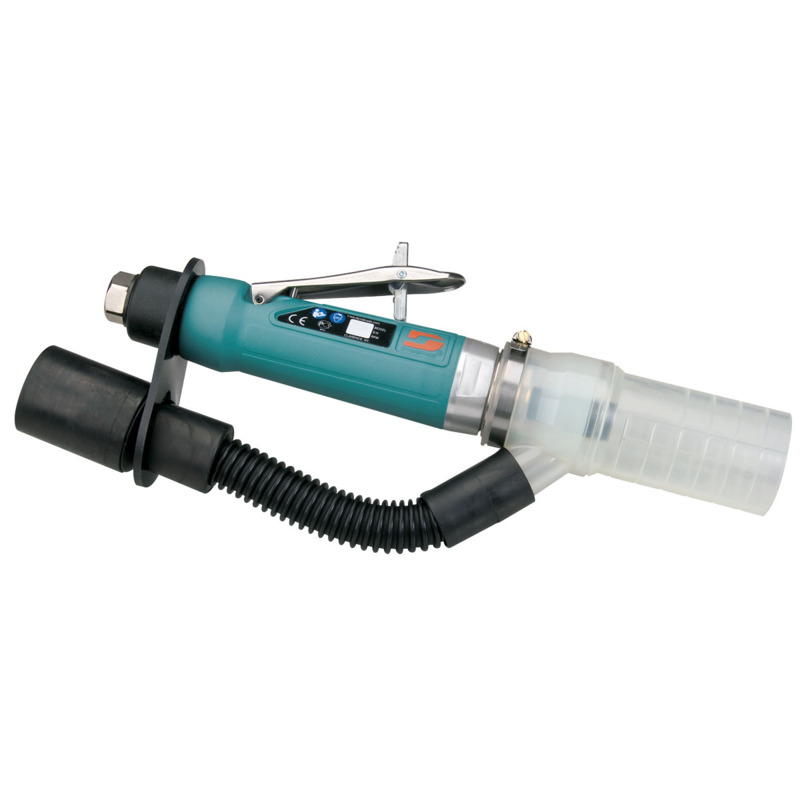

1 hp Straight-Line Die Grinder, Central Vacuum
20,000 RPM, Gearless, Rear Exhaust, 1/4" & 6mm Collets
-
1.0 hp (744 W) Straight-Line Vacuum Die Grinder for connection to central vacuum systems. Achieve rapid material removal with source capture. Gearless for less maintenance.
-
1.0 hp (744 W) Vacuum Die Grinders are utilized for rapid material removal, precise finishing, polishing, deburring, and removal of parting lines and flash. For use with carbide burrs, rotary files, mounted points, roll cartridges, wheels and discs.
-
Model includes urethane Vacuum Shroud for efficient capture of dust, debris, and contaminants such as Hexavalent Chromium. For use on non-ferrous materials, such as fiberglass, carbon fiber and composites.
-
Also includes Vacuum Sleeve, which can be easily trimmed to accommodate the length of the accessory. Sleeve can be trimmed horizontally or vertically, and is also removable. All models includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). 1-1/4" Dia. Vacuum Hose Port.
-
Each model also includes 6 mm Collet Insert.
| hp |
1 hp
|
|---|
| Air Inlet Thread |
|---|
| Collet Insert Size (in) |
1/4 in
|
|---|
| Exhaust Type |
|---|
| Height (in) |
5 in
|
|---|
| Height (mm) |
117 mm
|
|---|
| Length (in) |
14 in
|
|---|
| Length (mm) |
363 mm
|
|---|
| Max. RPM |
20000
|
|---|
| Motor Type |
|---|
| Tool Style |
Die Grinder
|
|---|
| Vacuum Type |
|---|
| Weight (kg) |
1.27 kg
|
|---|
| Weight (lb) |
2.8 lb
|
|---|
| Width (in) |
6 in
|
|---|
| Width (mm) |
152 mm
|
|---|
