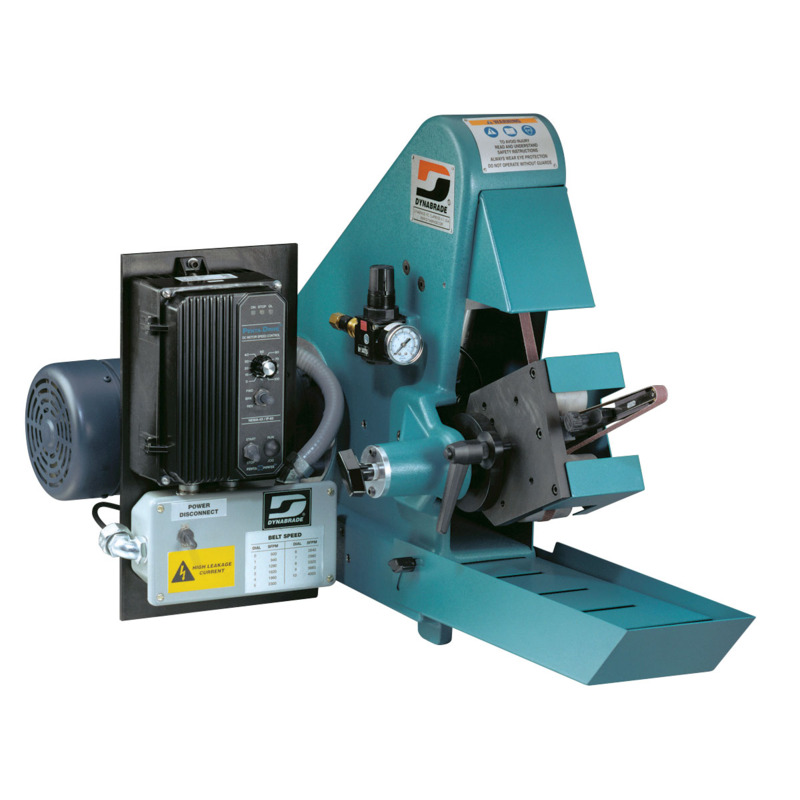

Amoladora versátil de velocidad variable
1 hp, 230 V (AC), 1 Phase, 50 Hz, 600-4,000 SFPM, for 1/4"-2" W x 72" L (6-51 mm x 122 cm) Belts
-
This model carries the CE (European Conformity) mark, signifying that it complies with all essential requirements of relevant European health, safety and environmental protection legislation.
-

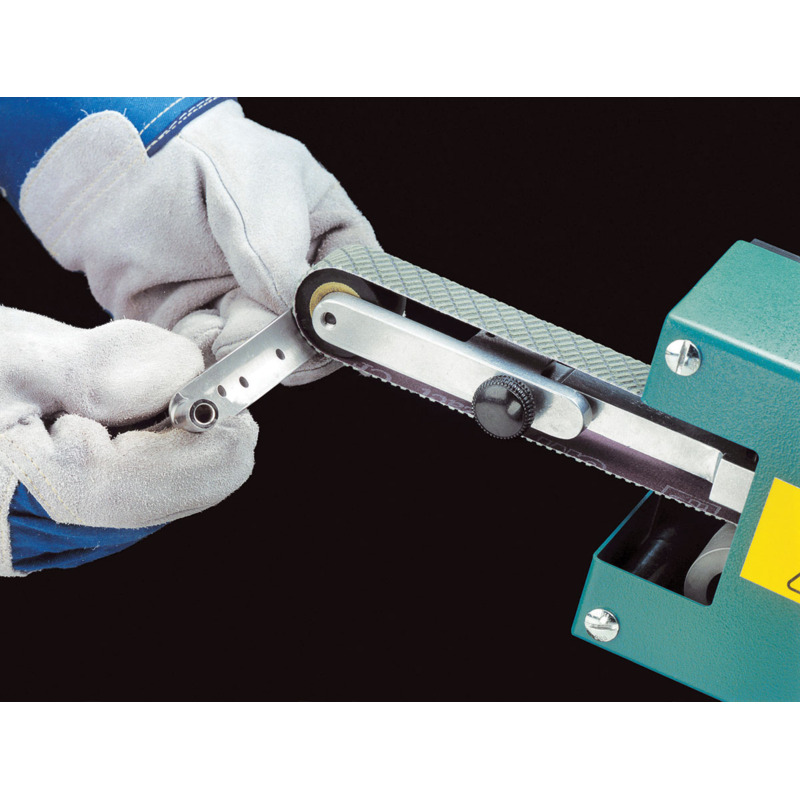

Versatility Grinder powers 72" abrasive belts in widths from 1/4" to 2", to provide a wide variety of finishing solutions.Ideal for use on castings and forgings, turbine blades, medical implants, investment castings and more.
-
Ideal for use on castings and forgings, turbine blades, medical implants, investment castings and more. Adjustable air belt tensioning provides constant control. Pivoting arm assembly for operator comfort.
-
Unit has includes efficient through-housing 4" vacuum port for dust control with optional vacuum scoop (64932).
| hp |
1 hp
|
|---|
| Máx. SFPM |
604000
|
|---|
| Altura (pulg.) |
22 in
|
|---|
| Altura (mm) |
559 mm
|
|---|
| Longitud (pulg.) |
33 in
|
|---|
| Longitud (mm) |
838 mm
|
|---|
| Peso (lb) |
120 lb
|
|---|
| Peso (kg) |
54.43 kg
|
|---|
| Anchura (pulg.) |
48 in
|
|---|
| Frecuencia [Hz] |
|---|
| Tensión |
240
|
|---|
