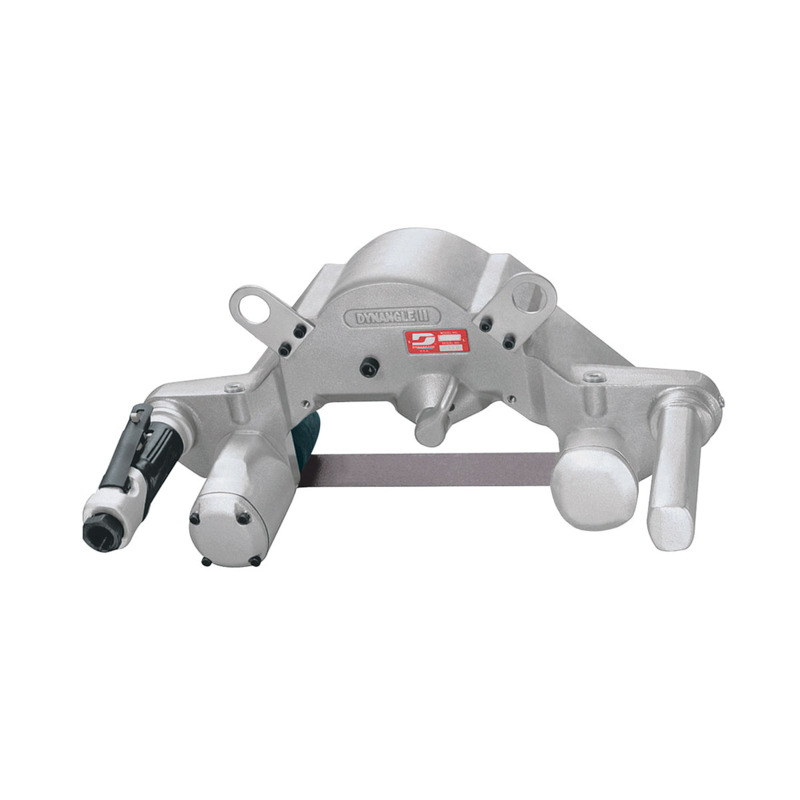

Dynangle II Abrasive Belt Tool, Single Motor
1.2 hp, Straight-Line, 13,000 RPM, Front Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts
-
Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
-

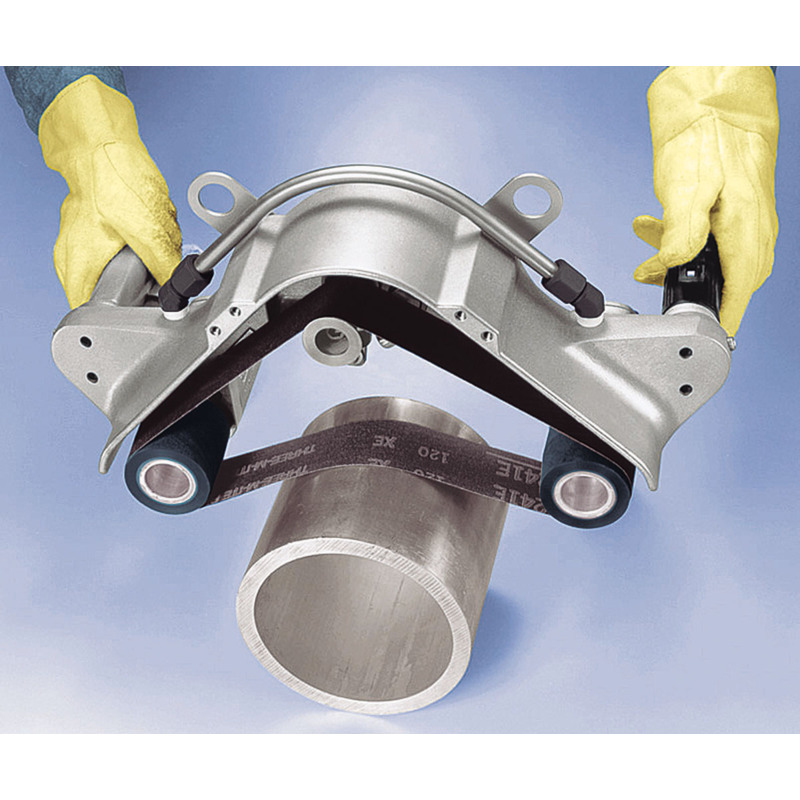

Single Motor model uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
-
14350 Conversion Kit available to upgrade single motor model to a dual motor model at a later date, if desired.
-
Safety-lock lever-throttle; hanger brackets included for optional overhead suspension.
-
For grinding with a platen pad, dual motor models are recommended.
| hp |
1.2 hp
|
|---|
| Máx. RPM |
13000
|
|---|
| Max. SFPM |
8500
|
|---|
| Rosca de entrada de ar |
|---|
| Tipo de escape |
|---|
| D.I. da mangueira |
|---|
| Tipo de vácuo |
|---|
| Altura (pol.) |
9 em
|
|---|
| Altura (mm) |
216 mm
|
|---|
| Comprimento (pol.) |
19 in
|
|---|
| Comprimento (mm) |
479 mm
|
|---|
| Peso (lb) |
15.66 lb
|
|---|
| Peso (kg) |
7.1 kg
|
|---|
| Largura (pol.) |
13 em
|
|---|
| Estilo da ferramenta |
Linha reta
|
|---|
