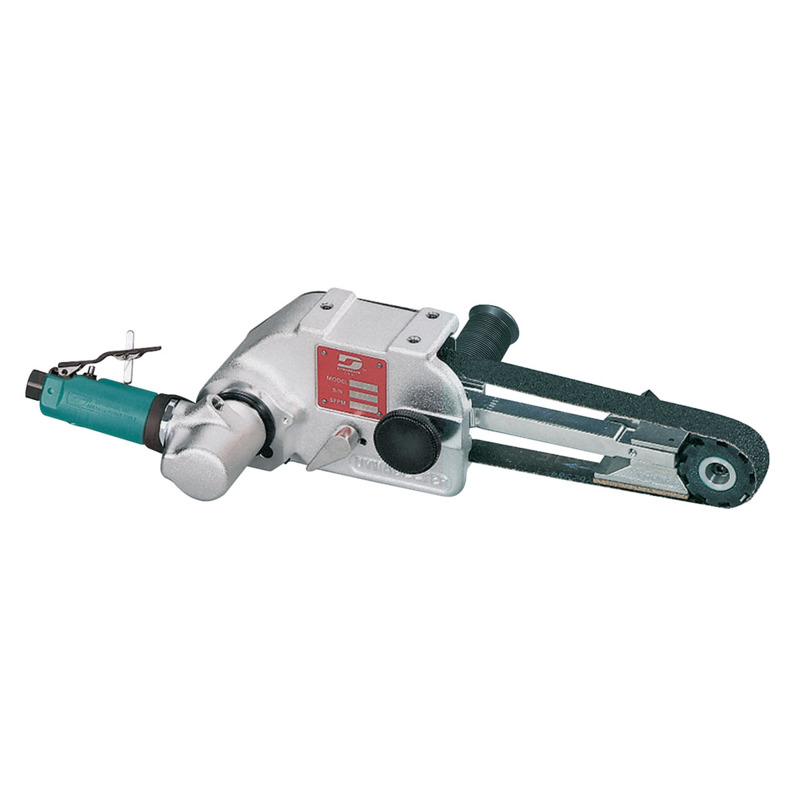

Dynabelter Abrasive Belt Tool, Standard Duty
.7 hp, 7 Degree Offset, 18,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts
-
For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
-

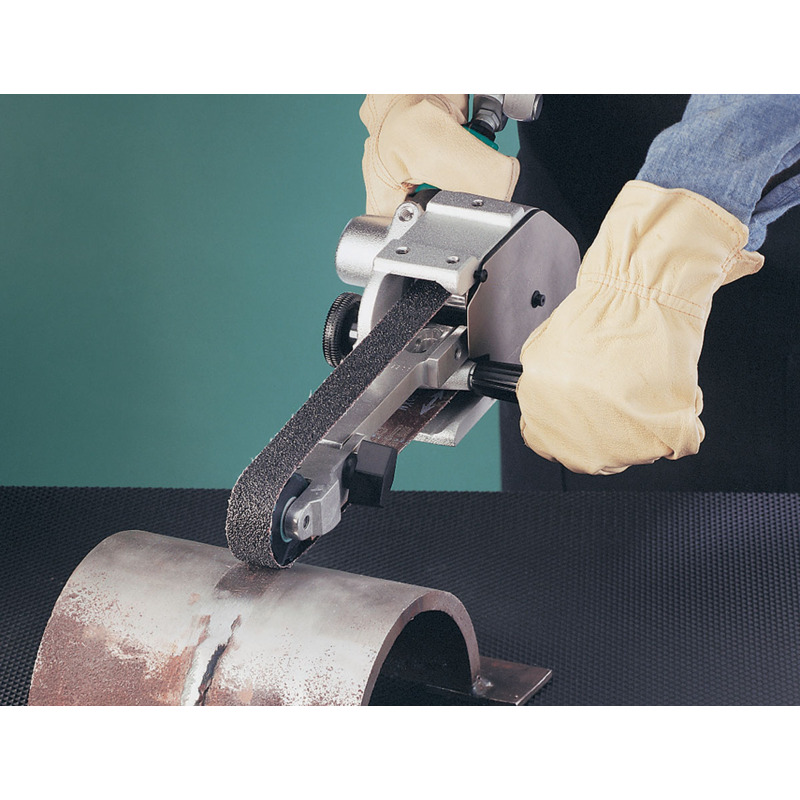

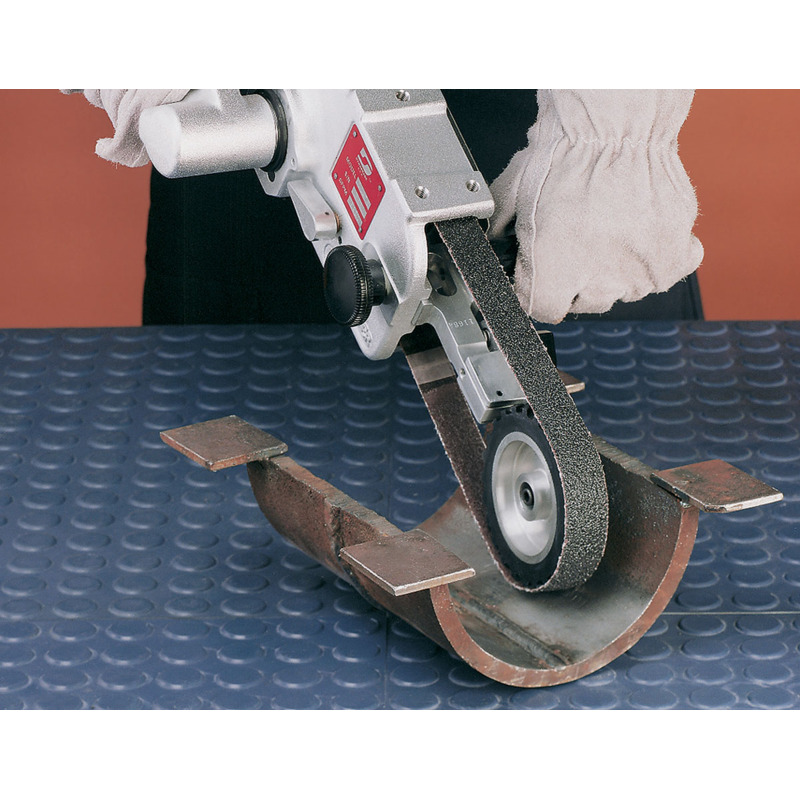

Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
-
Standard Duty, .7 hp model accepts 1" wide x 30" long abrasive belts. Adjustable speed; removable side handle.
-
Includes 11681 Contact Arm Assembly.
-
Ideal for use with 1/4" Dynaswivel , and 95676 Coupler/Plug Assembly.
| hp |
0.7 hp
|
|---|
| Máx. RPM |
18000
|
|---|
| Max. SFPM |
5890
|
|---|
| Rosca de entrada de ar |
|---|
| Tipo de escape |
|---|
| D.I. da mangueira |
|---|
| Tipo de vácuo |
|---|
| Altura (pol.) |
7 em
|
|---|
| Altura (mm) |
184 mm
|
|---|
| Comprimento (pol.) |
21 in
|
|---|
| Comprimento (mm) |
533 mm
|
|---|
| Peso (lb) |
5.81 lb
|
|---|
| Peso (kg) |
2.64 kg
|
|---|
| Largura (pol.) |
13 em
|
|---|
| Estilo da ferramenta |
Desvio de 7 graus
|
|---|
