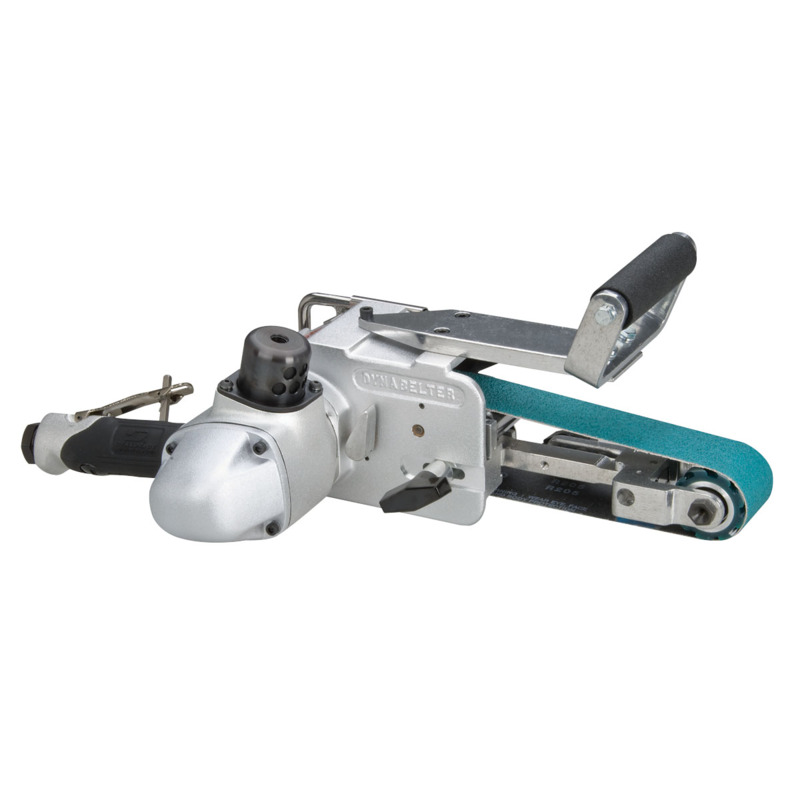

Dynabelter Abrasive Belt Tool, Extra Heavy-Duty
2 hp, Vertical, 7,200 RPM, Front Exhaust, for 1"-2" W x 30" L (25-51 mm x 762 mm) Belts
-
For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
-
Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
-
Extra Heavy-Duty, 2.0 hp model accepts 2" wide x 30" long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly.
-
11871 Contact Arm with 4" dia. contact wheel is available for 2" wide x 60" long belts, providing a 20" workable reach. Optional 11891 Platen is available for 11871 Arm.
-
Ideal for use with 1/2" Dynaswivel, and 98273 Coupler/Plug Assembly.
| hp |
2 hp
|
|---|
| Máx. RPM |
7200
|
|---|
| Max. SFPM |
4700
|
|---|
| Rosca de entrada de ar |
|---|
| Tipo de escape |
|---|
| D.I. da mangueira |
|---|
| Tipo de vácuo |
|---|
| Altura (pol.) |
8 em
|
|---|
| Altura (mm) |
197 mm
|
|---|
| Comprimento (pol.) |
22 in
|
|---|
| Comprimento (mm) |
546 mm
|
|---|
| Peso (lb) |
15.66 lb
|
|---|
| Peso (kg) |
7.1 kg
|
|---|
| Largura (pol.) |
13 em
|
|---|
| Estilo da ferramenta |
Right Angle
|
|---|
