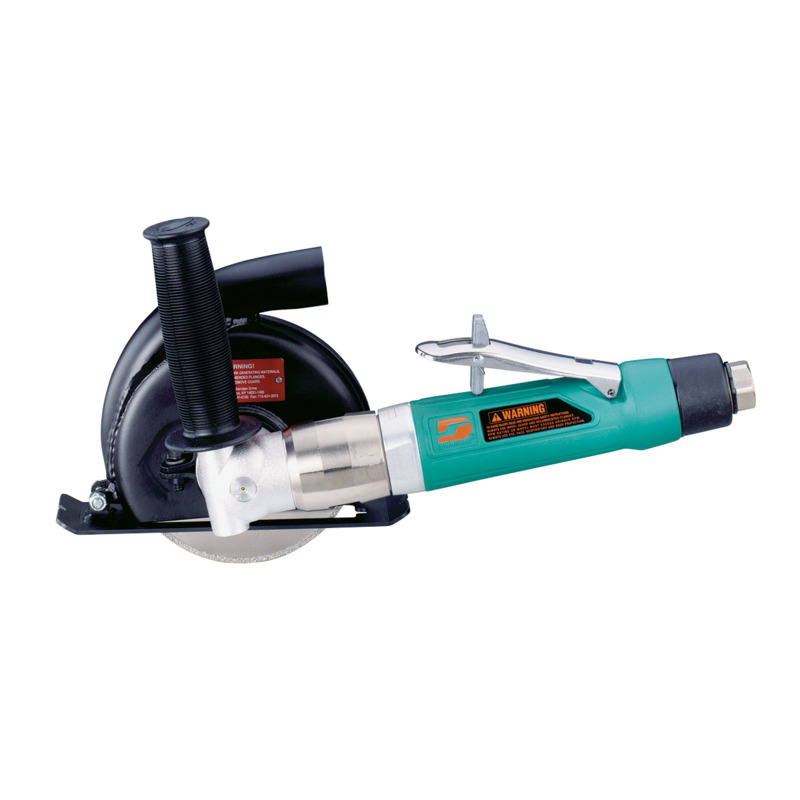

5" (127 mm) Dia. 7 Degree Offset Vacuum Cut-Off Wheel Tool
1 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread
-
Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
-
5" Diameter, Right Angle, 1 hp, 12,000 RPM, Rear Exhaust.
-
Ideal for use with optional 5" diameter Diamond Cut-Off Wheels. Adjustable wheel guard has vacuum port (1-1/4" outside diameter) that diverts airborne dust and debris to to optional vacuum source.
-

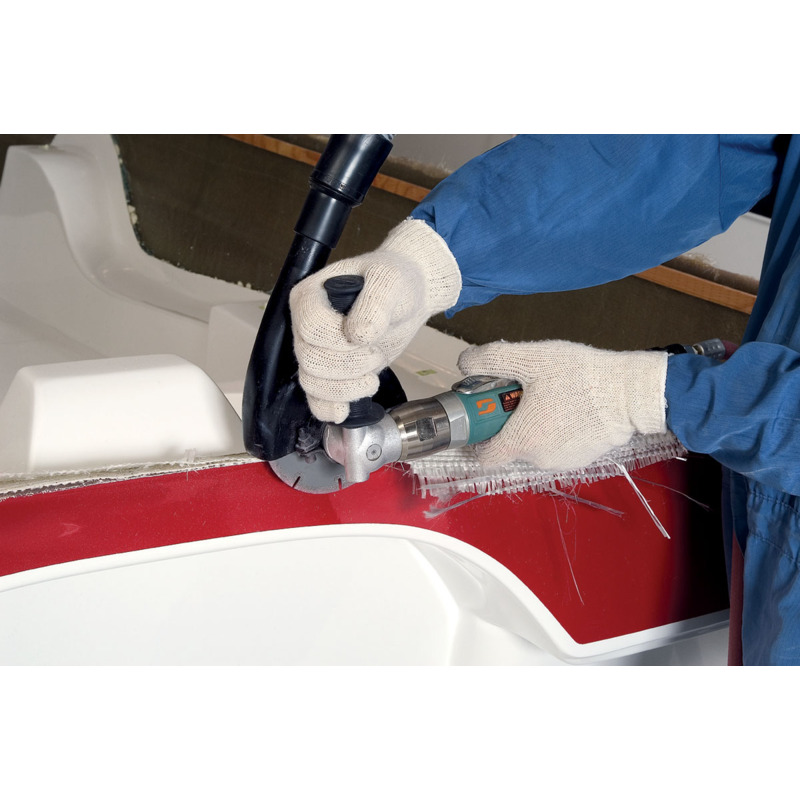

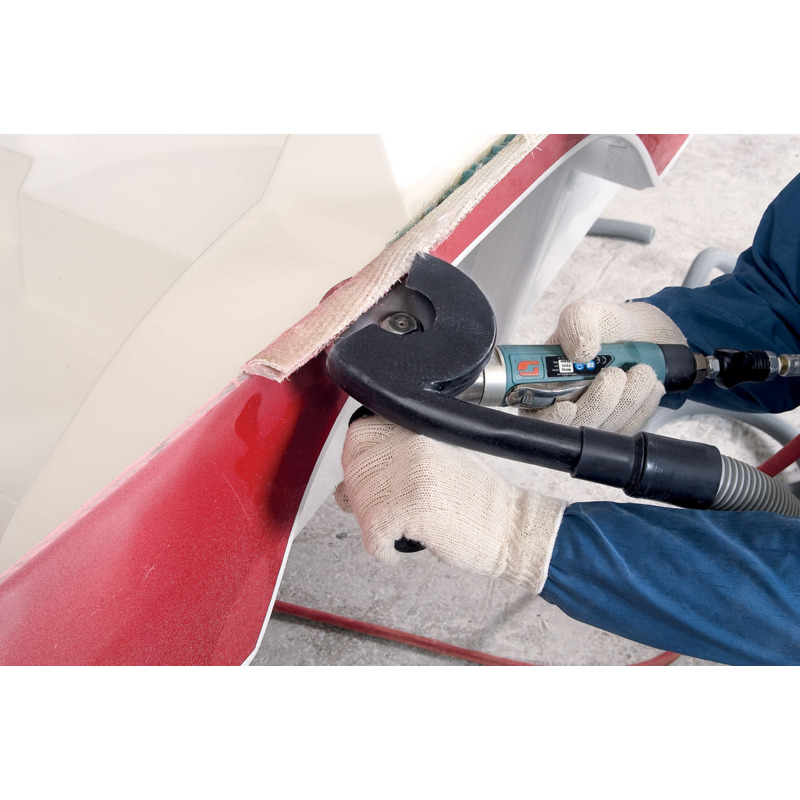

Powerful, high-quality air motor is effective for cutting through metals, thick fiberglass over-wrap and fiber spray.
-
Blade guide allows operator to expose up to 1-1/8" depth of Cut-Off Wheel if required. Safety-lock lever is included.
| hp |
1 cv
|
|---|
| Máx. RPM |
12000
|
|---|
| Rosca de entrada de ar |
|---|
| Tipo de escape |
|---|
| D.I. da mangueira |
|---|
| Tipo de vácuo |
|---|
| Altura (pol.) |
5 em
|
|---|
| Altura (mm) |
114 mm
|
|---|
| Comprimento (pol.) |
15 in
|
|---|
| Comprimento (mm) |
371 mm
|
|---|
| Peso (lb) |
6.7 lb
|
|---|
| Peso (kg) |
3.04 kg
|
|---|
| Largura (pol.) |
10 in
|
|---|
| Estilo da ferramenta |
Desvio de 7 graus
|
|---|
