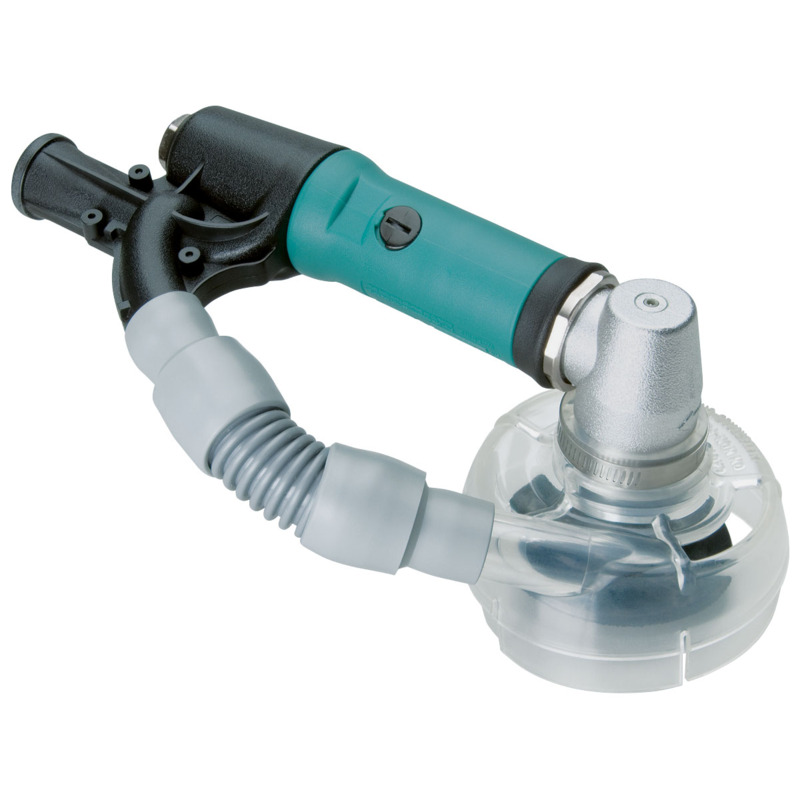

3" (76 mm) Dia. Self-Generated Vacuum Right Angle Disc Sander
.4 hp, 15,000 RPM, Geared, Extended Rear Exhaust, Locking-Type Female Pad, Shroud
-
Powerful .4 hp (298 W) Air Motor for Smooth, Controlled Sanding. Unique Vacuum Shroud Diverts Dust and Debris to Vacuum Source. For Use With 3" (76 mm) Diameter Locking-Type Abrasive Discs
-
Dynabrade?s Vacuum Disc Sander powers 3" (76 mm) diameter Abrasive Discs, for efficient material removal on non-ferrous surfaces such as carbon fiber, fiberglass, painted aluminum and more. As tool is sanding, flexible Vacuum Shroud captures dust, debris and contaminants (including Hexavalent Chromium) to vacuum source - ensuring cleaner, safer workplace. This is an essential tool for aerospace, automotive, marine and transportation industries!
-
Each model includes 51346 Backing Pad, for 3" (76 mm) diameter locking-type abrasive discs. Utilizes tool?s exhaust to create strong vacuum suction. 1" (25 mm) diameter vacuum port ready for connection to optional portable self-contained dust collection system.
-
Standard Shroud height of 1-1/2" (38 mm) accommodates 3" (76 mm) diameter bristle-type discs (sold separately). Standard Shroud may also be trimmed for customized applications. Vacuum Shroud constructed of high-quality clear urethane. Unique view -port allows operator to see edge of sanding disc, and offers optimum view of work surface. Flexible, non-marring Vacuum Shroud allows capture of dust, debris and contaminants (including Hexavalent Chromium). Vacuum Shroud angle of 6 degrees ensures ...
-
Wick-Lube system extends gear life with simple lubrication.
| hp |
0,4 hp
|
|---|
| Máx. RPM |
15000
|
|---|
| Rosca de entrada de ar |
|---|
| Tipo de escape |
|---|
| D.I. da mangueira |
|---|
| Tipo de vácuo |
|---|
| Altura (pol.) |
4 in
|
|---|
| Altura (mm) |
111 mm
|
|---|
| Comprimento (pol.) |
10 in
|
|---|
| Comprimento (mm) |
246 mm
|
|---|
| Peso (lb) |
1.7 lb
|
|---|
| Peso (kg) |
0.77 kg
|
|---|
| Largura (pol.) |
2 em
|
|---|
| Estilo da ferramenta |
Right Angle
|
|---|
