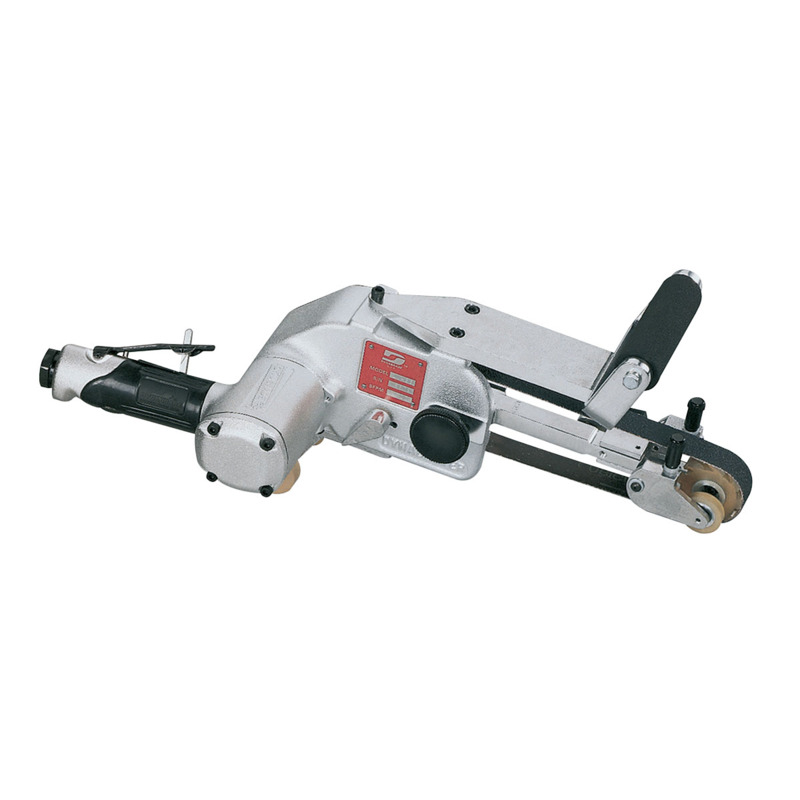

Dynabelter Accu-Grinder csiszolószalag szerszám, nagy teherbírású
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1" W x 30" L (25 mm x 762 mm) Belts
-

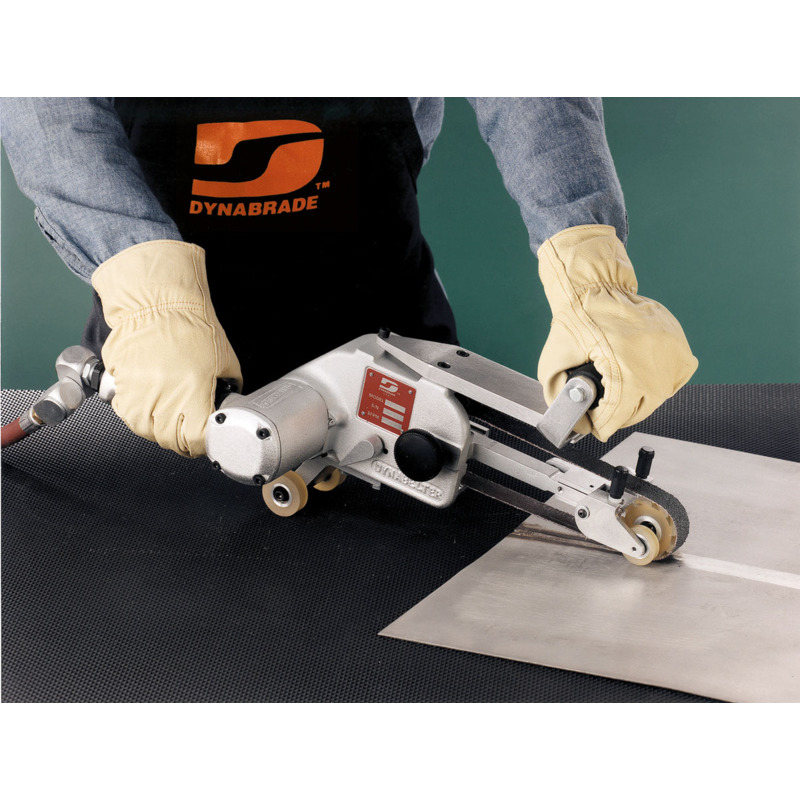

Grinds welds flat, without undercutting. Heavy-Duty, 1.2 hp model efficiently removes excess weld material and leaves narrow 'in-line' scratch pattern. This model takes the guesswork out of weld grinding, and prevents undercutting!
-
Adjustable guide tires control the depth of abrasive belt cut. Simple twist-knobs adjust depth of cut. Allows controlled grinding on flats, contours and inside/outside of pipes and tanks.
-
Includes 11717 Adjust-A-Wheel Contact Arm with 90-durometer standard serrated Contact Wheel, 2" diameter x 1" wide.
-
Work on Longitudinal Welds; I.D; 12" diameter pipe or larger.; O.D; 8" diameter pipe or larger.
| hp |
1,2 LE
|
|---|
| Max. RPM |
13000
|
|---|
| Max. SFPM |
4220
|
|---|
| Levegő bemeneti menet |
|---|
| Kipufogó típus |
|---|
| Tömlő azonosító. |
|---|
| Vákuum típus |
|---|
| Magasság (in) |
7 in
|
|---|
| Magasság (mm) |
178 mm
|
|---|
| Hosszúság (in) |
22 in
|
|---|
| Hosszúság (mm) |
559 mm
|
|---|
| Súly (font) |
10.14 lb
|
|---|
| Tömeg (kg) |
4.6 kg
|
|---|
| Szélesség (in) |
13 in
|
|---|
| Szerszám stílus |
Right Angle
|
|---|
