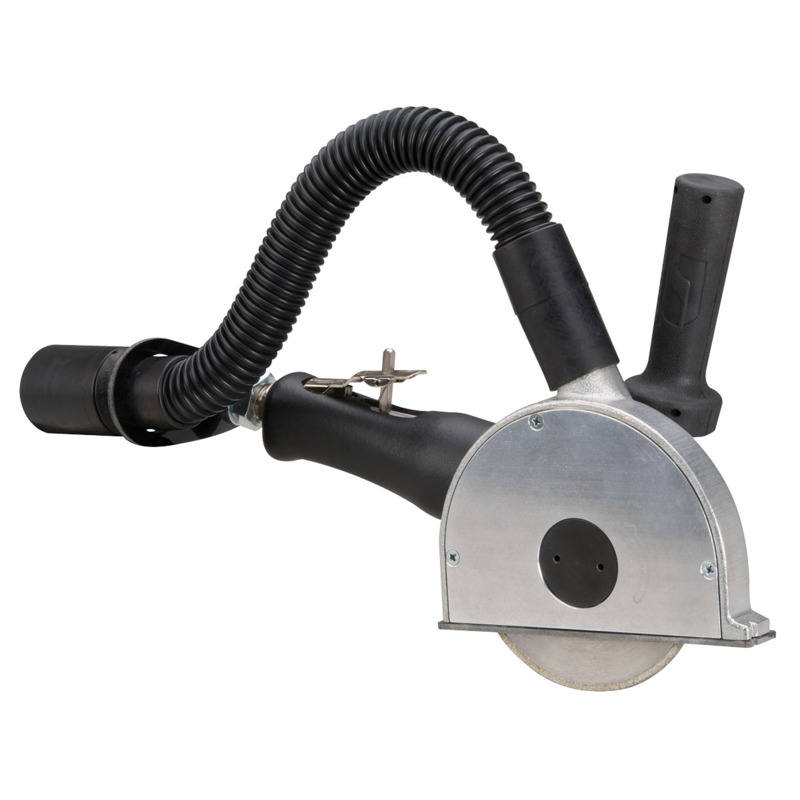

5" (127mm) átmérő. derékszögű vákuumos levágó kerékszerszám
1.3 hp, 12,000 RPM, Rotational Exhaust, 3/8"-24 Spindle Thread
-
Tool accepts optional 5" (127 mm) dia. Diamond Cut-Off Wheels with 3/4" (19 mm) dia. center hole. Adjustable wheel guard has vacuum port 1-1/4" (32 mm) outside dia. that diverts airborne dust and debris to optional vacuum source. Excellent for efficient cutting with capture of dust and debris. Ideal for use on fiberglass and composites.
-
Non-marring composite base is removable to utilize maximum blade depth of 1-3/16" (30 mm). Optional composite base is available for scoring. Shroud/Guide Plate design allows cutting as close as 1/8" (3 mm) to leading edge of work piece.
-
Wick Lube System extends gear life with simple lubrication. Exhaust system rotates 360 degrees to ensure exhaust is always directed away from operator. Safety-lock throttle lever is included.
-
Tool includes 95848 Gear Oil and 95541 Gear Oil Gun.
| hp |
1.3 hp
|
|---|
| Max. RPM |
12000
|
|---|
| Levegő bemeneti menet |
|---|
| Kipufogó típus |
|---|
| Tömlő azonosító. |
|---|
| Vákuum típus |
|---|
| Magasság (in) |
8 in
|
|---|
| Magasság (mm) |
213 mm
|
|---|
| Hosszúság (in) |
15 in
|
|---|
| Hosszúság (mm) |
386 mm
|
|---|
| Súly (font) |
7.3 lb
|
|---|
| Tömeg (kg) |
3.31 kg
|
|---|
| Szélesség (in) |
10 in
|
|---|
| Szerszám stílus |
Right Angle
|
|---|
